Oria

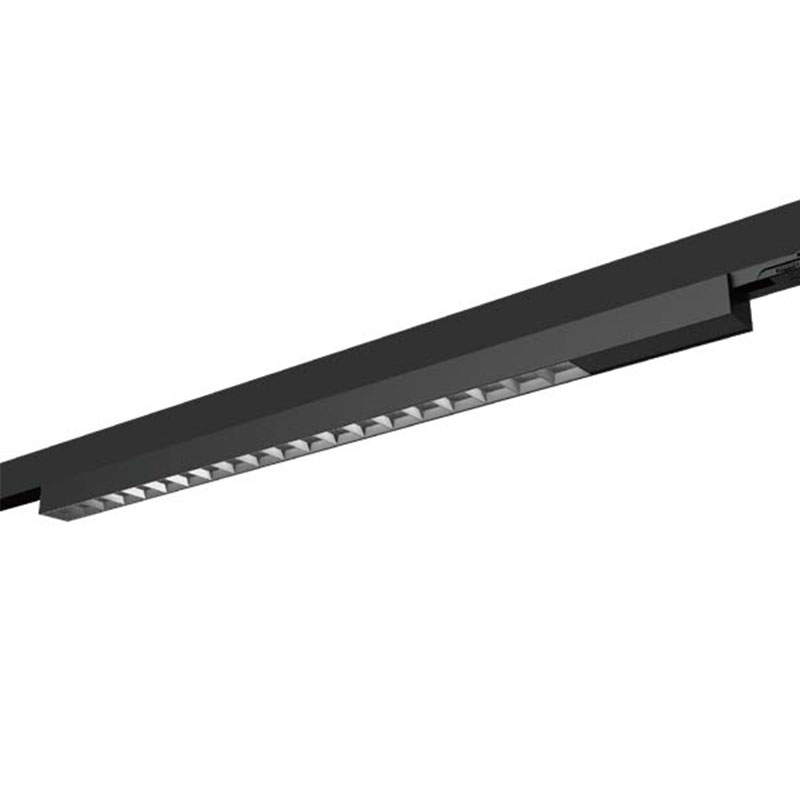

Housing is made of extruded aluminum with highly pure powder coating. Available in white (RAL 9003) and black (RAL 9005) color. It mounts SMD leds. Many different optics available. The led driver is included and integrated in the fixture. Three different low glare optics for rectangular beam angle ORIA is recomended for stores and supermarkets
For the more detail product information or complete catalogue,
please contact with us sales@vianolux.com
Code composition
| Product information | VLT211/35W | VLT211/40W |
|---|---|---|
| Installation: | Track 3 circuits | |
| Material: | Aluminum | |
| Painting: | Highly pure powder coating | |
| System power(W): | 35 | 40 |
| Fixture lumen output(lm): | 3770 | 4200 |
| System efficiency(lm/W): | 110 | 105 |
| Led driver | Included | |
| Light source information | ||
| Led Typology: | SMD | |
| Led power (W) | 35 | 40 |
| Lumen output 3000K CRI 90 (lm): | 5200 | 6000 |
| Led efficiency (lm/W): | 150 | 150 |
| Model | Power | CRI RA | CCT K | Beam ° | Color | Cover | Dimming |
|---|---|---|---|---|---|---|---|
| VLT211-35 | 35W | 90 >90 SDCM 3 | 3000K (30) | 30X70 | WH White | NA | On-Off |
| VLT211-40 | 40W | 80 >80 SDCM 3 | 3500K (35) | 45X70 | BK Black | DALI | |
| 4000K (40) | 60X70 | PHASE CUT |
